• Features and Specification

Hydraulic Ram Pushoff

Unique hydraulic pushoff feature provides smooth even distribution of silage, resulting in higher quality feed.

This movement, along with the strong side tines, ensures that the silage is pushed forward off the forks in front of the machine at a rate controlled by the operator.

End lumps, bumps, and balling. By quickly and evenly spreading silage, the BuckRake allows you to spend more time packing to enhance feed quality.

Hydraulic Ram Pushoff

Handles 4.5 tons

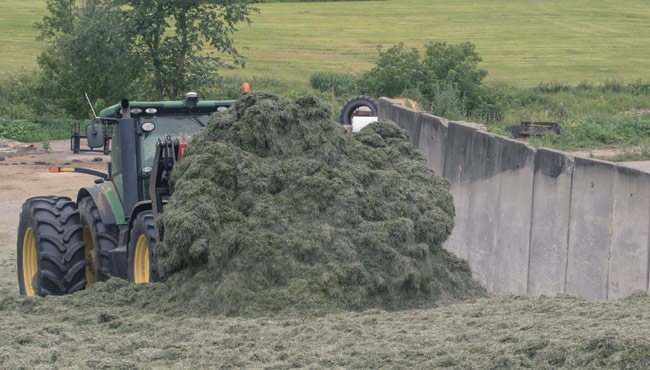

Buckrake easily handles 4.5 tons of silage at one time, allowing you to move more material more efficiently and reduce your overall cycle time.

Faster and more effecient than a bucket or a blade, BuckRake saves you time, fuel and greatly reduces stress on your tractor.

Available in 3 different sizes, BuckRake is designed to fit Cat II-III, front or rear 3 point linkage, requiring a single remote SCV outlet.

Handles 4.5 tons

Easy to Use

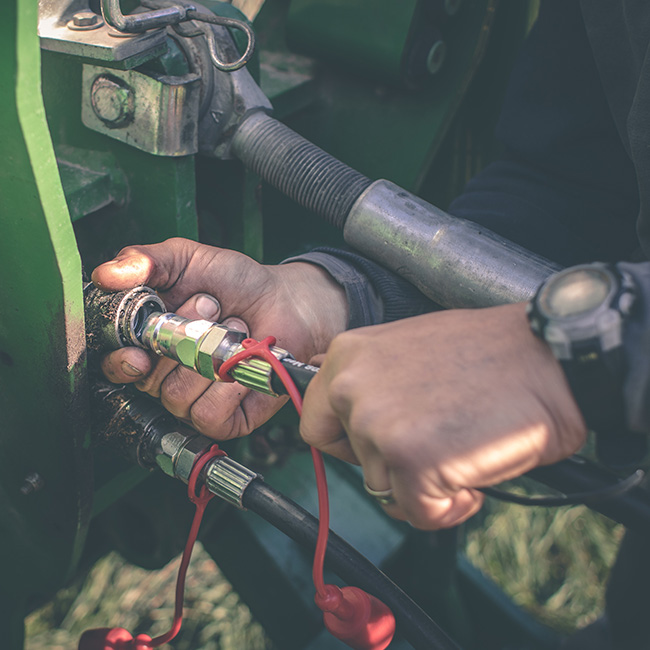

Easy set up. The BuckRake 3 point mounting system quickly mounts to your tractor’s front, or rear 3 point linkage. Designed for use with a manual, or hydraulic top link. The BuckRake 5 top mounting holes allow for the perfect articulation range. Complete with hydraulic lines and quick couplers, BuckRake easily installs in minutes.

Easy on your tractor. Twin 75mm hydraulic cylinders balanced through a divider valve allow for smooth powerful silage push off without effecting your tractor’s power while lifting, or climbing. This results in noticeable fuel savings working in haylage. The BuckRake moves volume without the twisting action associated with blades, or loaders illuminating adverse side loads on your tractor’s frame.

Easy to Use

The Proof is in the Bunk

For achieving the highest preserved feed quality, silage needs to be evenly spread in 3-5 inch layers and well packed.

Only BuckRake allows operators to easily and accurately meter out feed in even layers. This results in higher, more consistent feed quality with much less shrinkage and chance of avalanche.

BuckRake is so much faster than conventional dozer blades that operators have more time to pack, often eliminating the need for second tractor on the pile.

Layers

All BuckRakes Include:

  • Heavy Duty Design
  • Hardox Tines
  • 3 point hitch link mounting for front or rear
  • 5 Top link positions
  • High flow divider valve for even push off
  • Twin 75mm hydraulic rams
  • Hydraulic lines with quick couplers
  • 4 removable side tines with integral storage
  • High quality paint finish
  • Category 2/3 mounting brackets

Different Models:

Model Width Tines Capacity Weight
RNBR008 8'0" 10 168 cu/ft 2,755 lbs
RNBR010 10'0" 12 213 cu/ft 3,086 lbs
RNBR012 12'0" 14 240 cu/ft 3,461 lbs
